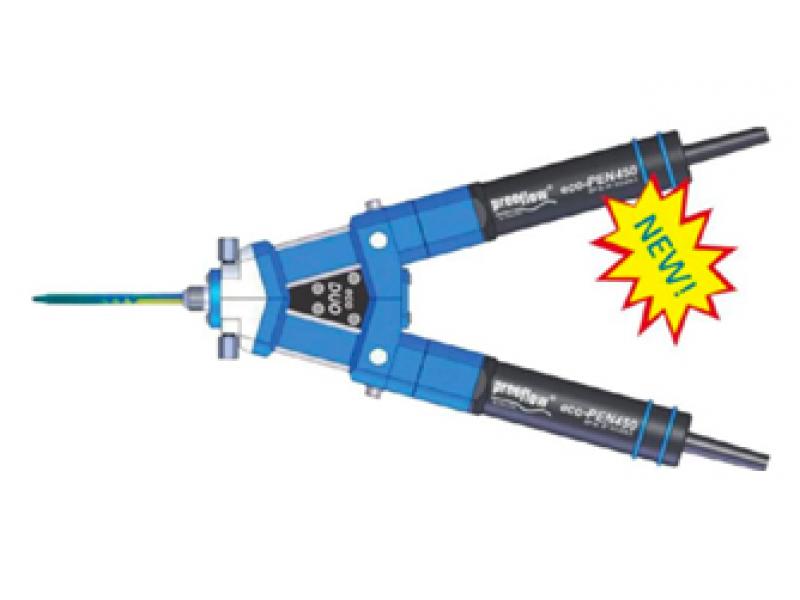

eco- DUO450

Pre flow @ eco-du0 adopts spiral structure design, pressure seal, rotor and stator are self sealing design, easy to replace. Through the directional rotation of the rotor in the stator cavity, the conveying function is realized. The conveying process does not produce shear effect on the medium, so it does not have any influence on the properties of the medium. At the same time, it can easily realize the function of medium suction by reversing the motor to ensure the cleanliness of media and materials, and completely solve the problems of medium leakage and wire drawing.

Suitable for fluid dispensing, such as: UV glue, AB glue, epoxy (black glue), white glue, EMI conductive adhesive, silicon, epoxy resin, instant glue, silver glue, red glue, solder paste, heat dissipation paste, solder paste, transparent paint, screw fixing agent, etc.

Technical characteristics

■ Real volumetric conveying

■ suction function

■ suitable for various viscous media

■ easy to clean

■ the flow rate is not affected by pressure changes

■ maximum pressure 16 ~ 20bar

■ delivery pressure range up to 40 bar

■ The sensor can be used to detect whether the AB component is glued or not

Field of application

■ electronic packaging

■LED/LCD/OLED

■ biochemical industry

■ Laboratory

■ optoelectronic industry

■SMD/SMT

■ semiconductor

■ pharmaceutical industry

■ new energy EV industry

Technical parameter table
