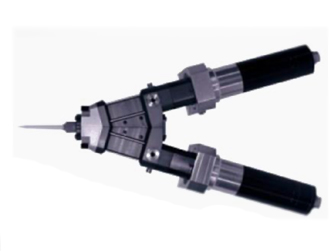

2K-Dispenser ViscoDuo-V 4/4

■ viscoduo-v 4 / 4 micro two-component dispensing system uses static mixing pipe for uniform mixing of glue. Two component media are accurately and quantitatively delivered to the mixing head through independent pump body. Before mixing, the two component media are completely isolated, and no valve is needed

■ The specially designed mixing head can ensure the independent transportation of medium without any dead angle

■ low requirements for feed conveying pressure

■ The mixing ratio of the system can be precisely adjusted by adjusting the flow rate of the two micro dispensing pumps

■ Integrated pressure sensor to realize on-line whole process monitoring

■ can realize reflux function (prevent medium leakage and wire drawing problems)

■ The output flow rate is constant, which is not affected by the change of medium temperature, viscosity and density

Field of application

■ electronic packaging

■ LED/LCD/OLED

■ biochemical industry

■ Laboratory

■ optoelectronic industry

■ SMD/SMT

■ semiconductor

■ pharmaceutical industry

■ new energy EV industry

Product application

■ static mixing of media with the same or different viscosity

■All kinds of glue point coating, line coating, potting applications

■ suitable for epoxy resin (EP), polyurethane (PU), silicone resin (SI), methyl methacrylate (MMA)

■It is suitable for high filling content and heat sensitive medium

■ paints and coatings, etc

Technical parameter table
